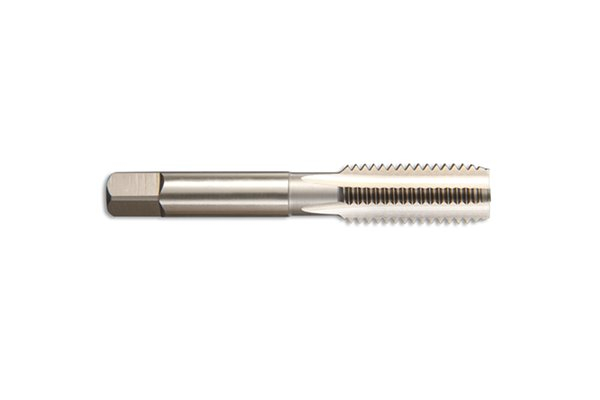

M22 x 2.5 DIN352 FINISHER HSS SERIAL FORM TAP
Metric Coarse Singles or Sets of Hand Taps (3 taps per set) for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.
| Nominal Diameter | M22 x 2.5 FIN |
|---|---|
| Series # | 60702 |
| Surface Finish | P0 Bright Finish |
| Material | HSS-E |
| Flute Length | 35mm |
| Overall Length | 100mm |
