FCS Type - HSS-E Taps (DIN 371)

FCS Type - HSS-E Taps (DIN 371)

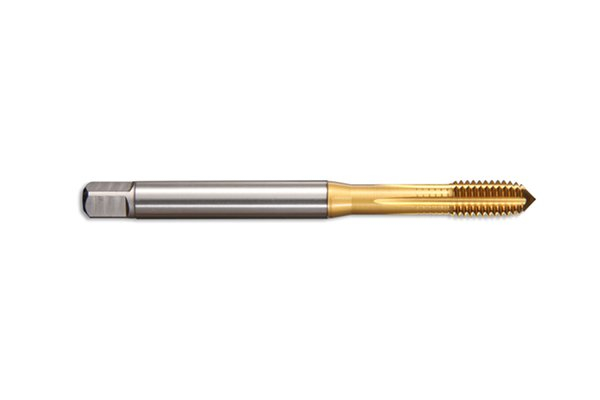

FCS Type HSS-E Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole size. Available with lubrication grooves for deeper threads over 2.5 x diameter and to produce a more accurate thread form.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
631377-02653 M3x0.5 ROLL D371 6HX FCS TiN TAP M3 x 0.5 TiN 631377 P0/P5 HSS-E 5mm 56mm
You need to be logged in to see prices.
631377-03053 M4x0.7 ROLL D371 6HX FCS TiN TAP M4 x 0.7 TiN 631377 P0/P5 HSS-E 7mm 63mm
You need to be logged in to see prices.
631377-03653 M6x1.0 ROLL D371 6HX FCS TiN TAP M6 x 1.0 TiN 631377 P0/P5 HSS-E 10mm 80mm
You need to be logged in to see prices.
631377-04053 M8x1.25 ROLL D371 6HX FCS TiN TAP M8 x 1.25 TiN 631377 P0/P5 HSS-E 13mm 90mm
You need to be logged in to see prices.
631377-04453 M10x1.5 ROLL D371 6HX FCS TiN TAP M10 x 1.5 TiN 631377 P0/P5 HSS-E 15mm 100mm
You need to be logged in to see prices.
