BVA Type - HSS-E DIN Taps (DIN 371|374|376)

Descriptions

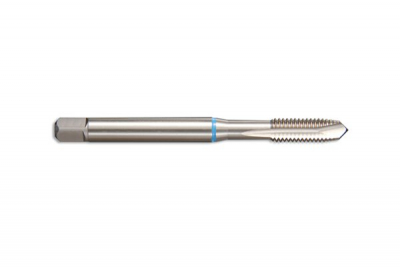

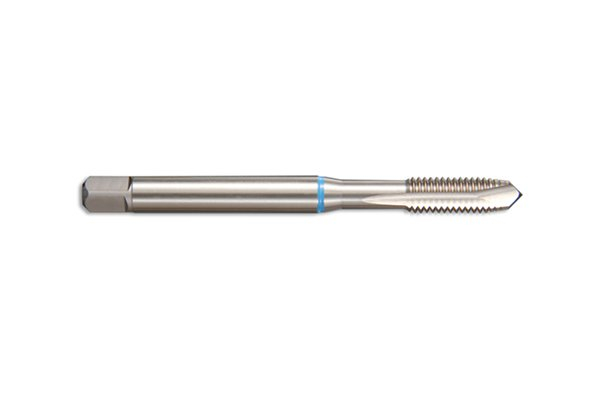

BVA Type HSS-E Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal Diameter	Series #	Surface Finish	Material	Flute Length	Overall Length	Price
631334-03450	M5x0.8 SP/PT D371 BVA TAP	M5 x 0.8 BRIGHT	631334	P1 Steam Tempered	HSS-E	13mm	70mm	You need to be logged in to see prices.
631334-03650	M6x1.0 SP/PT D371 BVA TAP	M6 x 1.0 BRIGHT	631334	P1 Steam Tempered	HSS-E	16mm	80mm	You need to be logged in to see prices.
631334-04050	M8x1.25 SP/PT D371 BVA TAP	M8 x 1.25 BRIGHT	631334	P1 Steam Tempered	HSS-E	19mm	90mm	You need to be logged in to see prices.
631334-04450	M10x1.5 SP/PT D371 BVA TAP	M10 x 1.5 BRIGHT	631334	P1 Steam Tempered	HSS-E	22mm	100mm	You need to be logged in to see prices.
631434-04020	M8x1.25 SP/PT D376 BVA TAP	M8 x 1.25 BRIGHT	631434	P1 Steam Tempered	HSS-E	20mm	90mm	You need to be logged in to see prices.
631434-05020	M14x2.0 SP/PT D376 BVA TAP	M14 x 2.0 BRIGHT	631434	P1 Steam Tempered	HSS-E	30mm	110mm	You need to be logged in to see prices.
631434-05420	M18x2.5 SP/PT D376 BVA TAP	M18 x 2.5 BRIGHT	631434	P1 Steam Tempered	HSS-E	34mm	125mm	You need to be logged in to see prices.
631434-05620	M20x2.5 SP/PT D376 BVA TAP	M20 x 2.5 BRIGHT	631434	P1 Steam Tempered	HSS-E	34mm	140mm	You need to be logged in to see prices.
631434-06020	M24x3.0 SP/PT D376 BVA TAP	M24 x 3.0 BRIGHT	631434	P1 Steam Tempered	HSS-E	387mm	160mm	You need to be logged in to see prices.
