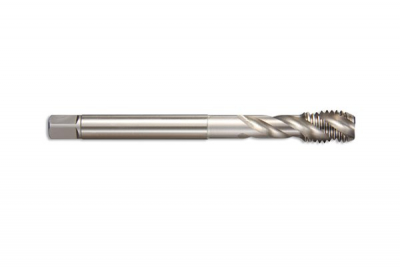

R40VAX Type - HSS-E Taps (DIN 371|376)

R40VAX Type - HSS-E Taps (DIN 371|376)

Machine tap in PMC with approx 40° spiral flute. 2.5 to 3.5 thread chamfar, spiral flute geometry. Recommended for tough and hard materials and to resist cold chip welding. Used also in synchronized tapping and can be used with minimal lubrication.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
651386-02624 M3x0.5 PMC SP/FL D371 R40VAX TiALSIN TAP M3X0.5 651386 P6 TiCN Coated HSSE-PM 11mm 56mm
You need to be logged in to see prices.
651386-03024 M4x0.7 PMC SP/FL D371 R40VAX TiALSIN TAP M4X0.7 651386 P6 TiCN Coated HSSE-PM 11mm 56mm
You need to be logged in to see prices.
651386-03424 M5x0.8 PMC SP/FL D371 R40VAX TiALSIN TAP M5X0.8 651386 P6 TiCN Coated HSSE-PM 13mm 70mm
You need to be logged in to see prices.
651386-03624 M6x1.0 PMC SP/FL D371 R40VAX TiALSIN TAP M6X1.0 651386 P6 TiCN Coated HSSE-PM 13mm 80mm
You need to be logged in to see prices.
651386-04024 M8x1.25 PMC SP/FL D371 R40VAX TiALSIN TAP M8X1.25 651386 P6 TiCN Coated HSSE-PM 19mm 90mm
You need to be logged in to see prices.
651386-04424 M10x1.5 PMC SP/FL D371 R40VAX TiALSIN TAP M10X1.5 651386 P6 TiCN Coated HSSE-PM 22mm 100mm
You need to be logged in to see prices.
651486-04024 M8x1.25 PMC SP/FL D376 R40VAX TiALSIN TAP M8 X 1.25 651486 P8 ALTiN Coated HSSE-PM 22mm 90mm
You need to be logged in to see prices.
651486-04424 M10x0.5 PMC SP/FL D376 R40VAX TiALSIN TAP M10 X 1.5 651486 P8 ALTiN Coated HSSE-PM 24mm 100mm
You need to be logged in to see prices.
651486-04824 M12x1.75 PMC SP/FL D376 R40VAX TiALSIN TAP M12 X 1.75 651486 P8 ALTiN Coated HSSE-PM 29mm 110mm
You need to be logged in to see prices.
651486-05024 M14x2.0 PMC SP/FL D376 R40VAX TiALSIN TAP M14 X 2.0 651486 P8 ALTiN Coated HSSE-PM 30mm 110mm
You need to be logged in to see prices.
651486-05224 M16x2.0 PMC SP/FL D376 R40VAX TiALSIN TAP M16 X 2.0 651486 P8 ALTiN Coated HSSE-PM 32mm 110mm
You need to be logged in to see prices.
651486-05424 M18x2.5 PMC SP/FL D376 R40VAX TiALSIN TAP M18 X 2.5 651486 P8 ALTiN Coated HSSE-PM 34mm 125mm
You need to be logged in to see prices.
651486-05624 M20x2.5 PMC SP/FL D376 R40VAX TiALSIN TAP M20 X 2.5 651486 P8 ALTiN Coated HSSE-PM 34mm 140mm
You need to be logged in to see prices.
651486-05824 M22x2.5 PMC SP/FL D376 R40VAX TiALSIN TAP M22 X 2.5 651486 P8 ALTiN Coated HSSE-PM 34mm 140mm
You need to be logged in to see prices.
651486-06024 M24x3.0 PMC SP/FL D376 R40VAX TiALSIN TAP M24 X 3.0 651486 P8 ALTiN Coated HSSE-PM 38mm 160mm
You need to be logged in to see prices.
