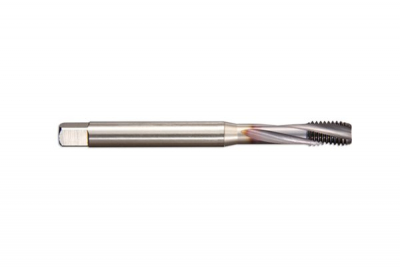

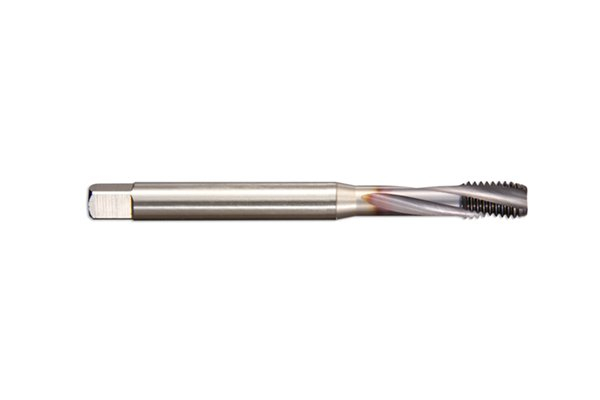

R15H Type - HSS-E Taps (DIN 371|376)

R15H Type - HSS-E Taps (DIN 371|376)

R15H Type HSS-E Machine tap with 15° slow right hand helix for use in high tensile Steel over 900 N/mm2.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
631319-02624 M3x0.5 SP/FL D371 6HX R15H TiCN TAP M3 x 0.5 TiCN 631319 P6 TiCN Coated HSS-E 5mm 56mm
You need to be logged in to see prices.
631319-03024 M4x0.7 SP/FL D371 6HX R15H TiCN TAP M4 x 0.7 TiCN 631319 P6 TiCN Coated HSS-E 7mm 63mm
You need to be logged in to see prices.
631319-03424 M5x0.8 SP/FL D371 6HX R15H TiCN TAP M5 x 0.8 TiCN 631319 P6 TiCN Coated HSS-E 8mm 70mm
You need to be logged in to see prices.
631319-04024 M8x1.25 SP/FL D371 6HX R15H TiCN TAP M8 x 1.25 TiCN 631319 P6 TiCN Coated HSS-E 12mm 90mm
You need to be logged in to see prices.
631319-04424 M10x1.5 SP/FL D371 6HX R15H TiCN TAP M10 x 1.5 TiCN 631319 P6 TiCN Coated HSS-E 15mm 100mm
You need to be logged in to see prices.
631419-04024 M8x1.25 SP/FL D376 6HX R15H TiCN TAP M8 x 1.25 TiCN 631419 P6 TiCN Coated HSS-E 12mm 90mm
You need to be logged in to see prices.
631419-04424 M10x1.5 SP/FL D376 6HX R15H TiCN TAP M10 x 1.5 TiCN 631419 P6 TiCN Coated HSS-E 12mm 100mm
You need to be logged in to see prices.
631419-04824 M12x1.75 SP/FL D376 6HX R15H TiCN TAP M12 x 1.75 TiCN 631419 P6 TiCN Coated HSS-E 18mm 110mm
You need to be logged in to see prices.
631419-05024 M14x2.0 SP/FL D376 6HX R15H TiCN TAP M14 x 2.0 TiCN 631419 P6 TiCN Coated HSS-E 20mm 110mm
You need to be logged in to see prices.
631419-05224 M16x2.0 SP/FL D376 6HX R15H TiCN TAP M16 x 2.0 TiCN 631419 P6 TiCN Coated HSS-E 20mm 110mm
You need to be logged in to see prices.
631419-05624 M20x2.5 SP/FL D376 6HX R15H TiCN TAP M20 x 2.5 TiCN 631419 P6 TiCN Coated HSS-E 25mm 140mm
You need to be logged in to see prices.
631419-06024 M24x3.0 SP/FL D376 6HX R15H TiCN TAP M24 x 3.0 TiCN 631419 P6 TiCN Coated HSS-E 30mm 160mm
You need to be logged in to see prices.
