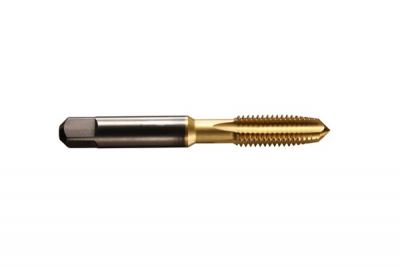

Metric Coarse - TiN Coated Straight Flute Taps (ISO 529)

Descriptions

Metric Coarse Straight Flute full size taps used as Machine taps or sets of 3 as Hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length. TiN coating provides longer tool life or increased cutting speeds.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal Diameter	Series #	Surface Finish	Material	Flute Length	Overall Length	Price
600054.020.7	M4x0.70 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M4 x 0.7 SEC	60005	P5 TiN Coated	HSS	13mm	53mm	You need to be logged in to see prices.
600059.031.25	M9x1.25 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M9 x 1.25 BOT	60005	P5 TiN Coated	HSS	22mm	72mm	You need to be logged in to see prices.
600059.021.25	M9x1.25 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M9 x 1.25 SEC	60005	P5 TiN Coated	HSS	22mm	72mm	You need to be logged in to see prices.
600058.031.25	M8x1.25 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M8 x 1.25 BOT	60005	P5 TiN Coated	HSS	22mm	72mm	You need to be logged in to see prices.
600058.021.25	M8x1.25 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M8 x 1.25 SEC	60005	P5 TiN Coated	HSS	22mm	72mm	You need to be logged in to see prices.
600057.031.0	M7x1.00 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M7 x 1.0 BOT	60005	P5 TiN Coated	HSS	19mm	66mm	You need to be logged in to see prices.
600057.021.0	M7x1.00 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M7 x 1.0 SEC	60005	P5 TiN Coated	HSS	19mm	66mm	You need to be logged in to see prices.
600056.031.0	M6x1.00 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M6 x 1.0 BOT	60005	P5 TiN Coated	HSS	19mm	66mm	You need to be logged in to see prices.
600056.021.0	M6x1.00 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M6 x 1.0 SEC	60005	P5 TiN Coated	HSS	19mm	66mm	You need to be logged in to see prices.
600055.030.8	M5x0.80 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M5 x 0.8 BOT	60005	P5 TiN Coated	HSS	16mm	58mm	You need to be logged in to see prices.
600055.020.8	M5x0.80 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M5 x 0.8 SEC	60005	P5 TiN Coated	HSS	16mm	58mm	You need to be logged in to see prices.
600054.530.75	M4.5x0.75 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M4.5 x 0.75 BOT	60005	P5 TiN Coated	HSS	13mm	53mm	You need to be logged in to see prices.
600054.520.75	M4.5x0.75 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M4.5 x 0.75 SEC	60005	P5 TiN Coated	HSS	13mm	53mm	You need to be logged in to see prices.
600054.030.7	M4x0.70 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M4 x 0.7 BOT	60005	P5 TiN Coated	HSS	13mm	53mm	You need to be logged in to see prices.
6000510.021.5	M10x1.50 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M10 x 1.5 SEC	60005	P5 TiN Coated	HSS	24mm	80mm	You need to be logged in to see prices.
600053.530.6	M3.5x0.60 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M3.5 x 0.6 BOT	60005	P5 TiN Coated	HSS	19mm	50mm	You need to be logged in to see prices.
600053.520.6	M3.5x0.60 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M3.5 x 0.6 SEC	60005	P5 TiN Coated	HSS	19mm	50mm	You need to be logged in to see prices.
600053.030.5	M3x0.50 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M3 x 0.5 BOT	60005	P5 TiN Coated	HSS	16mm	48mm	You need to be logged in to see prices.
600053.020.5	M3x0.50 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M3 x 0.5 SEC	60005	P5 TiN Coated	HSS	16mm	48mm	You need to be logged in to see prices.
6000516.032.0	M16x2.00 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M16 x 2.0 BOT	60005	P5 TiN Coated	HSS	32mm	102mm	You need to be logged in to see prices.
6000516.022.0	M16x2.00 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M16 x 2.0 SEC	60005	P5 TiN Coated	HSS	32mm	102mm	You need to be logged in to see prices.
6000514.032.0	M14x2.00 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M14 x 2.0 BOT	60005	P5 TiN Coated	HSS	30mm	95mm	You need to be logged in to see prices.
6000514.022.0	M14x2.00 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M14 x 2.0 SEC	60005	P5 TiN Coated	HSS	30mm	95mm	You need to be logged in to see prices.
6000512.031.75	M12x1.75 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M12 x 1.75 BOT	60005	P5 TiN Coated	HSS	29mm	89mm	You need to be logged in to see prices.
6000512.021.75	M12x1.75 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M12 x 1.75 SEC	60005	P5 TiN Coated	HSS	29mm	89mm	You need to be logged in to see prices.
6000511.031.5	M11x1.50 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M11 x 1.5 BOT	60005	P5 TiN Coated	HSS	25mm	85mm	You need to be logged in to see prices.
6000511.021.5	M11x1.50 HSS SECOND TAP TiN ISO 529 SHORT MACHINE 6H	M11 x 1.5 SEC	60005	P5 TiN Coated	HSS	25mm	85mm	You need to be logged in to see prices.
6000510.031.5	M10x1.50 HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H	M10 x 1.5 BOT	60005	P5 TiN Coated	HSS	24mm	80mm	You need to be logged in to see prices.
