Metric Coarse - Spiral Flute Taps (ISO 529)

Metric Coarse - Spiral Flute Taps (ISO 529)

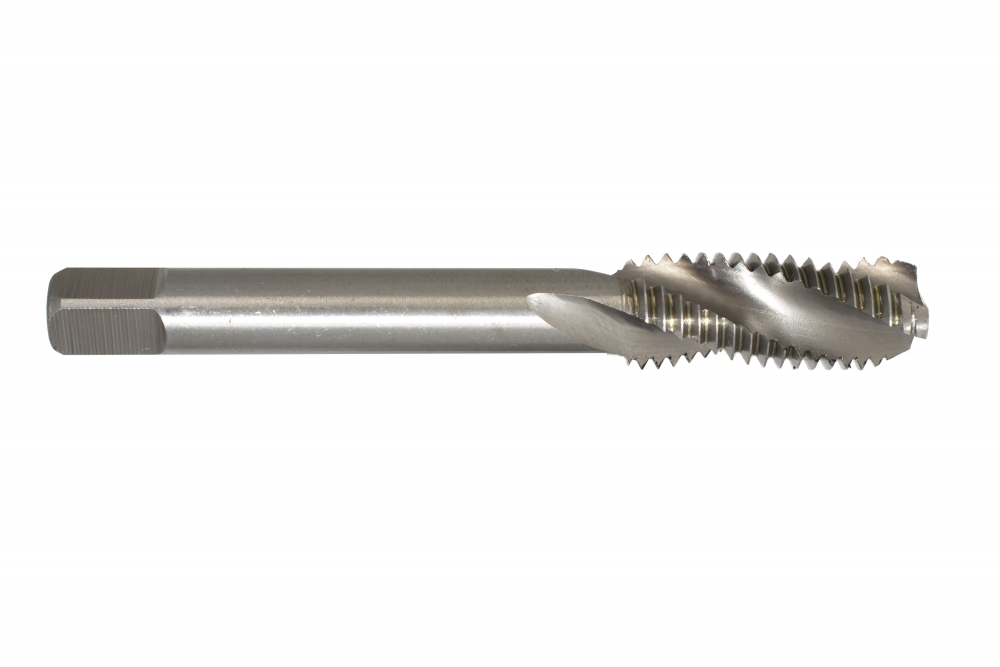

Metric Coarse Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
6002727.03.0 M27x3.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M27 x 3.0 60027 P1 Steam Tempered HSS 45mm 135mm
You need to be logged in to see prices.
6002712.01.75 M12x1.75 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M12 x 1.75 60027 P1 Steam Tempered HSS 29mm 89mm
You need to be logged in to see prices.
6002714.02.0 M14x2.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M14 x 2.0 60027 P1 Steam Tempered HSS 30mm 95mm
You need to be logged in to see prices.
6002716.02.0 M16x2.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M16 x 2.0 60027 P1 Steam Tempered HSS 32mm 102mm
You need to be logged in to see prices.
6002718.02.5 M18x2.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M18 x 2.5 60027 P1 Steam Tempered HSS 37mm 112mm
You need to be logged in to see prices.
600272.00.4 M2x0.40 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M2 x 0.4 60027 P1 Steam Tempered HSS 8mm 41mm
You need to be logged in to see prices.
600272.50.45 M2.5x0.45 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M2.50 x 0.45 60027 P1 Steam Tempered HSS 9.5mm 44.5mm
You need to be logged in to see prices.
6002720.02.5 M20x2.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M20 x 2.5 60027 P1 Steam Tempered HSS 37mm 112mm
You need to be logged in to see prices.
6002722.02.5 M22x2.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M22 x 2.5 60027 P1 Steam Tempered HSS 38mm 118mm
You need to be logged in to see prices.
6002724.03.0 M24x3.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M24 x 3.0 60027 P1 Steam Tempered HSS 45mm 130mm
You need to be logged in to see prices.
6002710.01.5 M10x1.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M10 x 1.5 60027 P1 Steam Tempered HSS 24mm 80mm
You need to be logged in to see prices.
600273.00.5 M3x0.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M3 x 0.5 60027 P1 Steam Tempered HSS 16mm 48mm
You need to be logged in to see prices.
600273.50.6 M3.5x0.60 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M3.50 x 0.6 60027 P1 Steam Tempered HSS 19mm 50mm
You need to be logged in to see prices.
6002730.03.5 M30x3.50 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M30 x 3.5 60027 P1 Steam Tempered HSS 48mm 138mm
You need to be logged in to see prices.
600274.00.7 M4x0.70 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M4 x 0.7 60027 P1 Steam Tempered HSS 13mm 53mm
You need to be logged in to see prices.
600275.00.8 M5x0.80 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M5 x 0.8 60027 P1 Steam Tempered HSS 16mm 58mm
You need to be logged in to see prices.
600276.01.0 M6x1.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M6 x 1.0 60027 P1 Steam Tempered HSS 19mm 66mm
You need to be logged in to see prices.
600277.01.0 M7x1.00 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M7 x 1.0 60027 P1 Steam Tempered HSS 19mm 66mm
You need to be logged in to see prices.
600278.01.25 M8x1.25 HSS SP/FLT TAP - P1 ISO 529 SHORT MACHINE 6H M8 x 1.25 60027 P1 Steam Tempered HSS 22mm 72mm
You need to be logged in to see prices.
6002027.03.0 M27x3.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M27 x 3.0 60020 P0 Bright Finish HSS 45mm 135mm
You need to be logged in to see prices.
6002012.01.75 M12x1.75 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M12 x 1.75 60020 P0 Bright Finish HSS 29mm 89mm
You need to be logged in to see prices.
6002014.02.0 M14x2.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M14 x 2.0 60020 P0 Bright Finish HSS 30mm 95mm
You need to be logged in to see prices.
6002016.02.0 M16x2.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M16 x 2.0 60020 P0 Bright Finish HSS 32mm 102mm
You need to be logged in to see prices.
6002018.02.5 M18x2.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M18 x 2.5 60020 P0 Bright Finish HSS 37mm 112mm
You need to be logged in to see prices.
600202.00.4 M2x0.40 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M2 x 0.4 60020 P0 Bright Finish HSS 8mm 41mm
You need to be logged in to see prices.
600202.50.45 M2.5x0.45 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M2.50 x 0.45 60020 P0 Bright Finish HSS 9.5mm 44.5mm
You need to be logged in to see prices.
6002020.02.5 M20x2.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M20 x 2.5 60020 P0 Bright Finish HSS 37mm 112mm
You need to be logged in to see prices.
6002022.02.5 M22x2.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M22 x 2.5 60020 P0 Bright Finish HSS 38mm 118mm
You need to be logged in to see prices.
6002024.03.0 M24x3.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M24 x 3.0 60020 P0 Bright Finish HSS 45mm 130mm
You need to be logged in to see prices.
6002010.01.5 M10x1.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M10 x 1.5 60020 P0 Bright Finish HSS 24mm 80mm
You need to be logged in to see prices.
600203.00.5 M3x0.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M3 x 0.5 60020 P0 Bright Finish HSS 16mm 48mm
You need to be logged in to see prices.
600203.50.6 M3.5x0.60 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M3.50 x 0.6 60020 P0 Bright Finish HSS 19mm 50mm
You need to be logged in to see prices.
6002030.03.5 M30x3.50 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M30 x 3.5 60020 P0 Bright Finish HSS 48mm 138mm
You need to be logged in to see prices.
600204.00.7 M4x0.70 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M4 x 0.7 60020 P0 Bright Finish HSS 13mm 53mm
You need to be logged in to see prices.
600205.00.8 M5x0.80 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M5 x 0.8 60020 P0 Bright Finish HSS 16mm 58mm
You need to be logged in to see prices.
600206.01.0 M6x1.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M6 x 1.0 60020 P0 Bright Finish HSS 19mm 66mm
You need to be logged in to see prices.
600207.01.0 M7x1.00 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M7 x 1.0 60020 P0 Bright Finish HSS 19mm 66mm
You need to be logged in to see prices.
600208.01.25 M8x1.25 HSS SP/FLT TAP - P0 ISO 529 SHORT MACHINE 6H M8 x 1.25 60020 P0 Bright Finish HSS 22mm 72mm
You need to be logged in to see prices.
