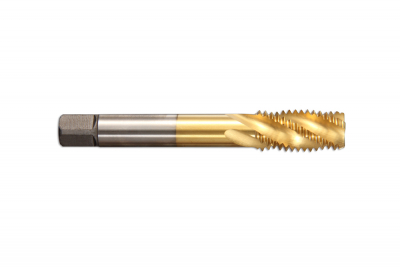

Metric Coarse - TiN Coated Spiral Flute Taps (ISO 529)

Metric Coarse - TiN Coated Spiral Flute Taps (ISO 529)

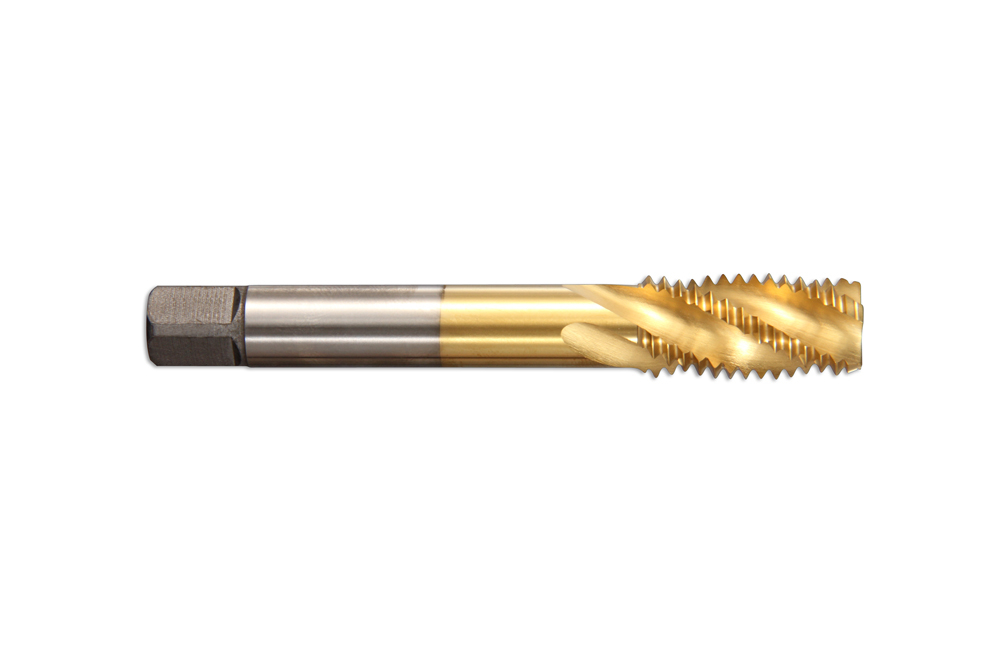

Metric Coarse Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si. TiN coating provides longer tool life.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Material Flute Length Overall Length Price
6002510 M10x1.50 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M10 60025 HSS 24mm 80mm
You need to be logged in to see prices.
6002512 M12x1.75 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M12 60025 HSS 29mm 89mm
You need to be logged in to see prices.
6002514 M14x2.00 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M14 60025 HSS 30mm 95mm
You need to be logged in to see prices.
6002516 M16x2.00 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M16 60025 HSS 32mm 102mm
You need to be logged in to see prices.
600253 M3x0.50 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M3 60025 HSS 16mm 48mm
You need to be logged in to see prices.
600254 M4x0.70 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M4 60025 HSS 13mm 53mm
You need to be logged in to see prices.
600255 M5x0.80 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M5 60025 HSS 16mm 58mm
You need to be logged in to see prices.
600256 M6x1.00 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M6 60025 HSS 19mm 66mm
You need to be logged in to see prices.
600257 M7x1.00 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M7 60025 HSS 19mm 66mm
You need to be logged in to see prices.
600258 M8x1.25 HSS SP/FLT TAP - TiN ISO 529 SHORT MACHINE 6H M8 60025 HSS 22mm 72mm
You need to be logged in to see prices.
