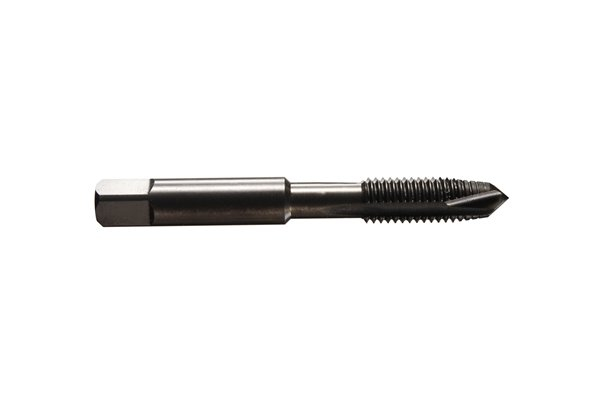

Metric Coarse - Spiral Point Taps (ISO 529)

Descriptions

Metric Coarse Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal Diameter	Series #	Surface Finish	Material	Flute Length	Overall Length	Price
6001022.02.5	M22x2.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M22 x 2.5	60010	P1 Steam Tempered	HSS	38mm	118mm	You need to be logged in to see prices.
600108.01.25	M8x1.25 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M8 x 1.25	60010	P1 Steam Tempered	HSS	22mm	72mm	You need to be logged in to see prices.
600107.01.0	M7x1.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M7 x 1.0	60010	P1 Steam Tempered	HSS	19mm	66mm	You need to be logged in to see prices.
600106.01.0	M6x1.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M6 x 1.0	60010	P1 Steam Tempered	HSS	19mm	66mm	You need to be logged in to see prices.
600105.00.8	M5x0.80 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M5 x 0.8	60010	P1 Steam Tempered	HSS	16mm	58mm	You need to be logged in to see prices.
600104.00.7	M4x0.70 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M4 x 0.7	60010	P1 Steam Tempered	HSS	13mm	53mm	You need to be logged in to see prices.
6001030.03.5	M30x3.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M30 x 3.5	60010	P1 Steam Tempered	HSS	48mm	138mm	You need to be logged in to see prices.
600103.50.6	M3.5x0.60 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M3.50 x 0.6	60010	P1 Steam Tempered	HSS	19mm	50mm	You need to be logged in to see prices.
600103.00.5	M3x0.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M3 x 0.5	60010	P1 Steam Tempered	HSS	16mm	48mm	You need to be logged in to see prices.
6001027.03.0	M27x3.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M27 x 3.0	60010	P1 Steam Tempered	HSS	45mm	135mm	You need to be logged in to see prices.
6001024.03.0	M24x3.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M24 x 3.0	60010	P1 Steam Tempered	HSS	45mm	130mm	You need to be logged in to see prices.
600101.20.25	M1.2x0.25 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M1.2 x 0.25	60010	P1 Steam Tempered	HSS	5.5mm	38.5mm	You need to be logged in to see prices.
6001020.02.5	M20x2.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M20 x 2.5	60010	P1 Steam Tempered	HSS	37mm	112mm	You need to be logged in to see prices.
600102.50.45	M2.5x0.45 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M2.50 x 0.45	60010	P1 Steam Tempered	HSS	9.5mm	44.5mm	You need to be logged in to see prices.
600102.00.4	M2x0.40 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M2 x 0.4	60010	P1 Steam Tempered	HSS	8mm	41mm	You need to be logged in to see prices.
6001018.02.5	M18x2.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M18 x 2.5	60010	P1 Steam Tempered	HSS	37mm	112mm	You need to be logged in to see prices.
6001016.02.0	M16x2.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M16 x 2.0	60010	P1 Steam Tempered	HSS	32mm	102mm	You need to be logged in to see prices.
6001014.02.0	M14x2.00 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M14 x 2.0	60010	P1 Steam Tempered	HSS	30mm	95mm	You need to be logged in to see prices.
6001012.01.75	M12x1.75 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M12 x 1.75	60010	P1 Steam Tempered	HSS	29mm	89mm	You need to be logged in to see prices.
6001010.01.5	M10x1.50 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M10 x 1.5	60010	P1 Steam Tempered	HSS	24mm	80mm	You need to be logged in to see prices.
600101.60.35	M1.6x0.35 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M1.60 x 0.35	60010	P1 Steam Tempered	HSS	8mm	41mm	You need to be logged in to see prices.
600101.40.3	M1.4x0.30 HSS SP/PT TAP - P1 ISO 529 SHORT MACHINE 6H	M1.4 x 0.3	60010	P1 Steam Tempered	HSS	7mm	40mm	You need to be logged in to see prices.
