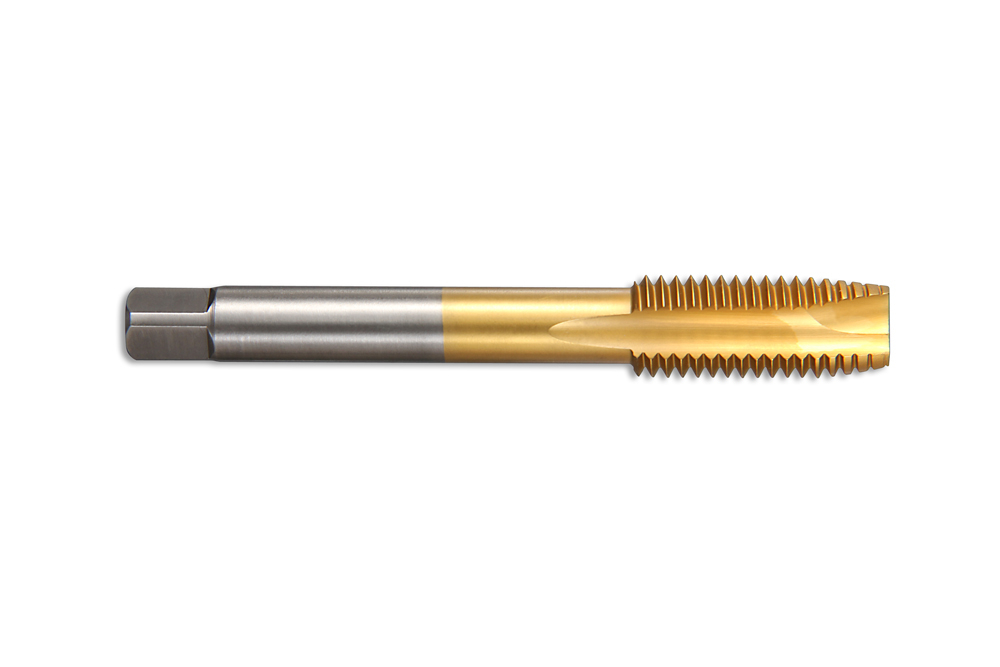

Metric Coarse - TiN Coated Spiral Point Taps (ISO 529)

Metric Coarse Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.
TiN coating provides longer tool life.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
6001510.01.5 M10X1.50 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M10 x 1.5 60015 P5 TiN Coated HSS 24mm 80mm
6001512.01.75 M12X1.75 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M12 x 1.75 60015 P5 TiN Coated HSS 29mm 89mm
6001514.02.0 M14X2.00 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M14 x 2.0 60015 P5 TiN Coated HSS 30mm 95mm
6001516.02.0 M16X2.00 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M16 x 2.0 60015 P5 TiN Coated HSS 32mm 102mm
600153.00.5 M3X0.50 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M3 x 0.5 60015 P5 TiN Coated HSS 16mm 48mm
600153.50.6 M3.5X0.60 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M3.5 x 0.6 60015 P5 TiN Coated HSS 19mm 50mm
600154.00.7 M4X0.70 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M4 x 0.7 60015 P5 TiN Coated HSS 13mm 53mm
600155.00.8 M5X0.80 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M5 x 0.8 60015 P5 TiN Coated HSS 16mm 58mm
600156.01.0 M6X1.00 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M6 x 1.0 60015 P5 TiN Coated HSS 19mm 66mm
600157.01.0 M7X1.00 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M7 x 1.0 60015 P5 TiN Coated HSS 19mm 66mm
600158.01.25 M8X1.25 HSS SP/PT TAP - TiN ISO 529 SHORT MACHINE 6H M8 x 1.25 60015 P5 TiN Coated HSS 22mm 72mm
