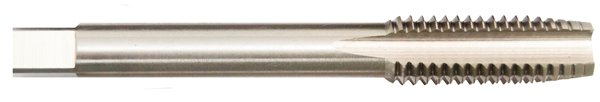

3/16"x24 BSW HSS SECOND TAP ISO 529 SHORT MACHINE 2B
British Standard Whitworth Straight Flute full size taps used as Machine taps or sets of 3 as Hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.
| Nominal Diameter | 3/16" BSW SEC |
|---|---|
| Series # | 60300 |
| Surface Finish | P0 Bright Finish |
| Material | HSS |
| Flute Length | 16mm |
| Overall Length | 58mm |
There are no downloads for this product.
