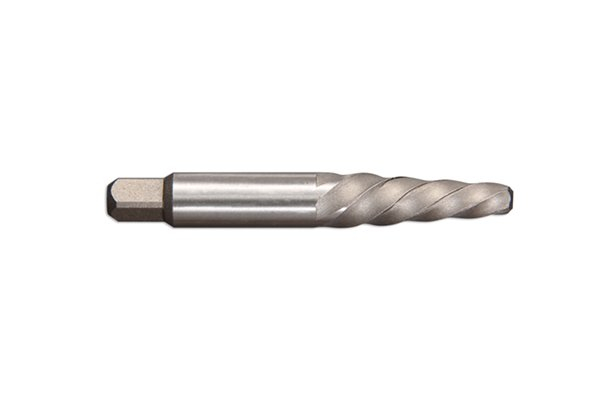

No.2 AISI1095 SCREW EXTRACTOR
Used expressly for removing broken or seized screws. They are left-handed, for use on right-handed threads. The screw is first drilled out to the proper diameter for that extractor. The extractor is then inserted into this hole and turned counter-clockwise using a tap wrench. As the extractor is turned the flutes on the tool dig into the screw, causing it to lock tightly and apply sufficient torque to remove the screw.
| Nominal Diameter | No2 |
|---|---|
| Series # | 09010 |
| Surface Finish | Grey Finish |
| Flute Length | 18mm |
| Overall Length | 59mm |
