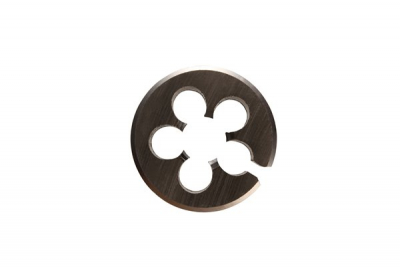

UNF - Unified National Fine Circular Split Dies (ISO 263)

Descriptions

Unified National Fine Circular Split Dies Used for cutting external threads - either by machine, or by hand when used in a die stock. Adjustment is facilitated via the split.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal Diameter	Series #	Surface Finish	Material	Price
6413010N-1316	No10x32 UNF x13/16" OD HS DIE	No.10 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-9161-516	9/16"x18 UNF x1.5/16"OD HS DIE	9/16" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-9162-	9/16"x18 UNF x2" OD HS DIE	9/16" UNF x 2"O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641300N-1316	No0x80 UNF x13/16" OD HS DIE	No.0 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-123-	1.1/2"x12 UNF x3" OD HS DIE	1.1/2" UNF x 3" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-143-	1.1/4"x12 UNF x3" OD HS DIE	1.1/4" UNF x 3" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-183-	1.1/8"x12 UNF x3" OD HS DIE	1.1/8" UNF x 3" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-2-	1"x12 UNF x2" OD HS DIE	1" UNF x 2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-3-	1"x12 UNF x3" OD HS DIE	1" UNF x 3" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301-383-	1.3/8"x12 UNF x3" OD HS DIE	1.3/8" UNF x 3" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-9161-12	9/16"x18 UNF x1.1/2" OD HS DIE	9/16" UNF x 1.1/2"O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
6413012N-1316	No12x28 UNF x13/16" OD HS DIE	No.12 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641301N-1316	No1x72 UNF x13/16" OD HS DIE	No.1 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641302N-1316	No2x64 UNF x13/16" OD HS DIE	No.2 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641303N-1316	No3x56 UNF x13/16" OD HS DIE	No.3 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641304N-1316	No4x48 UNF x13/16" OD HS DIE	No.4 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641305N-1316	No5x44 UNF x13/16" OD HS DIE	No.5 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641306N-1316	No6x40 UNF x13/16" OD HS DIE	No.6 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
641308N-1316	No8x36 UNF x13/16" OD HS DIE	No.8 UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-381-12	3/8"x24 UNF x1.1/2" OD HS DIE	3/8" UNF x 1.1/2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-121-516	1/2"x20 UNF x1.5/16" OD HS DIE	1/2" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-122-	1/2"x20 UNF x2" OD HS DIE	1/2" UNF x 2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-14-1316	1/4"x28 UNF x13/16" OD HS DIE	1/4" UNF x 13/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-141-	1/4"x28 UNF x1" OD HS DIE	1/4" UNF x 1" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-141-516	1/4"x28 UNF x1.5/16" OD HS DIE	1/4" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-341-12	3/4"x16 UNF x1.1/2" OD HS DIE	3/4" UNF x 1.1/2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-342-	3/4"x16 UNF x2" OD HS DIE	3/4" UNF x 2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-381-	3/8"x24 UNF x1" OD HS DIE	3/8" UNF x 1" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-121-12	1/2"x20 UNF x1.1/2" OD HS DIE	1/2" UNF x 1.1/2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-381-516	3/8"x24 UNF x1.5/16" OD HS DIE	3/8" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-5161-	5/16"x24 UNF x1" OD HS DIE	5/16" UNF x 1" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-5161-516	5/16"x24 UNF x1.5/16"OD HS DIE	5/16" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-581-12	5/8"x18 UNF x1.1/2" OD HS DIE	5/8" UNF x 1.1/2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-582-	5/8"x18 UNF x2" OD HS DIE	5/8" UNF x 2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-7161-12	7/16"x20 UNF x1.1/2" OD HS DIE	7/16" UNF x 1.1/2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-7161-516	7/16"x20 UNF x1.5/16"OD HS DIE	7/16" UNF x 1.5/16" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
64130-782-	7/8"x14 UNF x2" OD HS DIE	7/8" UNF x 2" O/D	64130	P0 Bright Finish	HSS	You need to be logged in to see prices.
