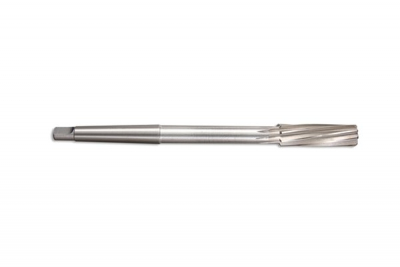

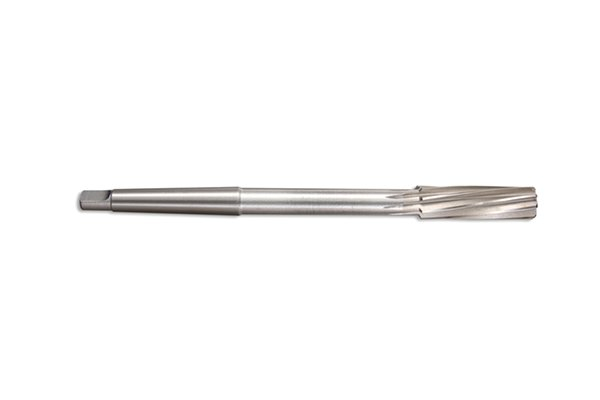

Taper Shank Machine Chucking Reamers Spiral Flute (DIN 208)

Taper Shank Machine Chucking Reamers Spiral Flute (DIN 208)

General-purpose reamers designed for machining steels with tensile strength up to 700 N/mm2, long-chipping aluminium, copper and soft plastics. When reaming blind holes use the straight fluted style, for interrupted holes it is recommended to use the spiral-fluted style.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter MTS Series # Material Flute Length Overall Length Price
7511140.0 40.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 40.00mm MTS 4 75111 HSS-E 81mm 329mm
You need to be logged in to see prices.
7511131.0 31.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 31.00mm MTS 3 75111 HSS-E 75mm 285mm
You need to be logged in to see prices.
7511132.0 32.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 32.00mm MTS 4 75111 HSS-E 77mm 317mm
You need to be logged in to see prices.
7511133.0 33.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 33.00mm MTS 4 75111 HSS-E 77mm 317mm
You need to be logged in to see prices.
7511134.0 34.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 34.00mm MTS 4 75111 HSS-E 78mm 321mm
You need to be logged in to see prices.
7511135.0 35.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 35.00mm MTS 4 75111 HSS-E 78mm 321mm
You need to be logged in to see prices.
7511136.0 36.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 36.00mm MTS 4 75111 HSS-E 79mm 325mm
You need to be logged in to see prices.
7511137.0 37.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 37.00mm MTS 4 75111 HSS-E 79mm 325mm
You need to be logged in to see prices.
7511138.0 38.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 38.00mm MTS 4 75111 HSS-E 81mm 329mm
You need to be logged in to see prices.
7511139.0 39.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 39.00mm MTS 4 75111 HSS-E 81mm 329mm
You need to be logged in to see prices.
751114.0 4.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 4.00mm MTS 1 75111 HSS-E 19mm 124mm
You need to be logged in to see prices.
7511130.0 30.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 30.00mm MTS 3 75111 HSS-E 73mm 281mm
You need to be logged in to see prices.
7511142.0 42.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 42.00mm MTS 4 75111 HSS-E 82mm 333mm
You need to be logged in to see prices.
7511144.0 44.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 44.00mm MTS 4 75111 HSS-E 83mm 336mm
You need to be logged in to see prices.
7511145.0 45.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 45.00mm MTS 4 75111 HSS-E 83mm 336mm
You need to be logged in to see prices.
7511148.0 48.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 48.00mm MTS 4 75111 HSS-E 86mm 344mm
You need to be logged in to see prices.
751115.0 5.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 5.00mm MTS 1 75111 HSS-E 23mm 133mm
You need to be logged in to see prices.
7511150.0 50.00mm MTS4 SP/FL CHUCKING REAMER HSCo D208-B H7 50.00mm MTS 4 75111 HSS-E 86mm 344mm
You need to be logged in to see prices.
751116.0 6.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 6.00mm MTS 1 75111 HSS-E 26mm 138mm
You need to be logged in to see prices.
751117.0 7.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 7.00mm MTS 1 75111 HSS-E 31mm 150mm
You need to be logged in to see prices.
751118.0 8.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 8.00mm MTS 1 75111 HSS-E 33mm 156mm
You need to be logged in to see prices.
751119.0 9.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 9.00mm MTS 1 75111 HSS-E 36mm 162mm
You need to be logged in to see prices.
7511121.0 21.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 21.00mm MTS 2 75111 HSS-E 62mm 232mm
You need to be logged in to see prices.
7511111.0 11.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 11.00mm MTS 1 75111 HSS-E 41mm 175mm
You need to be logged in to see prices.
7511112.0 12.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 12.00mm MTS 1 75111 HSS-E 44mm 182mm
You need to be logged in to see prices.
7511113.0 13.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 13.00mm MTS 1 75111 HSS-E 44mm 182mm
You need to be logged in to see prices.
7511114.0 14.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 14.00mm MTS 1 75111 HSS-E 47mm 189mm
You need to be logged in to see prices.
7511115.0 15.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 15.00mm MTS 2 75111 HSS-E 50mm 204mm
You need to be logged in to see prices.
7511116.0 16.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 16.00mm MTS 2 75111 HSS-E 52mm 210mm
You need to be logged in to see prices.
7511117.0 17.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 17.00mm MTS 2 75111 HSS-E 54mm 214mm
You need to be logged in to see prices.
7511118.0 18.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 18.00mm MTS 2 75111 HSS-E 56mm 219mm
You need to be logged in to see prices.
7511119.0 19.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 19.00mm MTS 2 75111 HSS-E 58mm 223mm
You need to be logged in to see prices.
7511120.0 20.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 20.00mm MTS 2 75111 HSS-E 60mm 228mm
You need to be logged in to see prices.
7511110.0 10.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 10.00mm MTS 1 75111 HSS-E 38mm 168mm
You need to be logged in to see prices.
7511122.0 22.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 22.00mm MTS 2 75111 HSS-E 64mm 237mm
You need to be logged in to see prices.
7511123.0 23.00mm MTS2 SP/FL CHUCKING REAMER HSCo D208-B H7 23.00mm MTS 2 75111 HSS-E 66mm 241mm
You need to be logged in to see prices.
7511124.0 24.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 24.00mm MTS 3 75111 HSS-E 68mm 268mm
You need to be logged in to see prices.
7511125.0 25.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 25.00mm MTS 3 75111 HSS-E 68mm 268mm
You need to be logged in to see prices.
7511126.0 26.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 26.00mm MTS 3 75111 HSS-E 70mm 273mm
You need to be logged in to see prices.
7511127.0 27.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 27.00mm MTS 3 75111 HSS-E 71mm 277mm
You need to be logged in to see prices.
7511128.0 28.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 28.00mm MTS 3 75111 HSS-E 71mm 277mm
You need to be logged in to see prices.
7511129.0 29.00mm MTS3 SP/FL CHUCKING REAMER HSCo D208-B H7 29.00mm MTS 3 75111 HSS-E 73mm 281mm
You need to be logged in to see prices.
751113.0 3.00mm MTS1 SP/FL CHUCKING REAMER HSCo D208-B H7 3.00mm MTS 1 75111 HSS-E 15mm 113mm
You need to be logged in to see prices.
