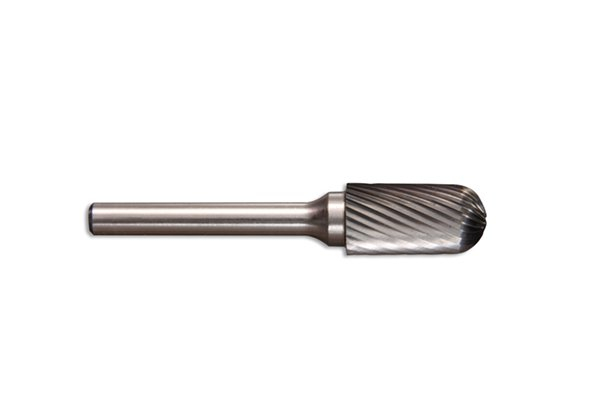

Shape C - Ball Nosed Cylinder (Single Cut)

Shape C - Ball Nosed Cylinder (Single Cut)

Shape C - Ball Nosed Cylinder Used for cutting, shaping, grinding and for the removal of sharp edges, burrs and excess material (deburring)

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Shank Diameter Series # Material Flute Length Overall Length Price
2742159446XL 10mmx19x6mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 2742159446XL 6mm 27421 CARBIDE 19mm 169mm
You need to be logged in to see prices.
2742195442 6mmx16x6mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 6mm 6mm 27421 CARBIDE 16mm 50mm
You need to be logged in to see prices.
2742195444 5/16"x19x6mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 5/16" - 7.94mm 6mm 27421 CARBIDE 19mm 65mm
You need to be logged in to see prices.
2742195446 3/8"x19x6mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 3/8" - 9.52mm 6mm 27421 CARBIDE 19mm 65mm
You need to be logged in to see prices.
2742195451 7/16"x25x6mm CYL BALL END BURR SINGLE CUT SHAPE C 7/16" - 11.11mm 6mm 27421 CARBIDE 25mm 70mm
You need to be logged in to see prices.
2742195455 1/2"x25x6mm CYL BALL END BURR SINGLE CUT SHAPE C 1/2" - 12.70mm 6mm 27421 CARBIDE 25mm 70mm
You need to be logged in to see prices.
2742195455XL 13mmx25x6mm CYL BALL END BURR SINGLE CUT SHAPE C 13mm 6mm 27421 CARBIDE 25mm 175mm
You need to be logged in to see prices.
2742195458 5/8"x25x6mm CYL BALL END BURR SINGLE CUT SHAPE C 5/8" - 15.88mm 6mm 27421 CARBIDE 25mm 70mm
You need to be logged in to see prices.
2742195469 3/32"x11x3mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 3/32" - 2.38mm 3mm 27421 CARBIDE 11mm 38mm
You need to be logged in to see prices.
2742195471 3mmx13x3mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 3mm 3mm 27421 CARBIDE 13mm 38mm
You need to be logged in to see prices.
2742195473 1/4"x13x3mm CYL WITH BALL END BURR SINGLE CUT SHAPE C 1/4" - 6.35mm 3mm 27421 CARBIDE 13mm 50mm
You need to be logged in to see prices.
