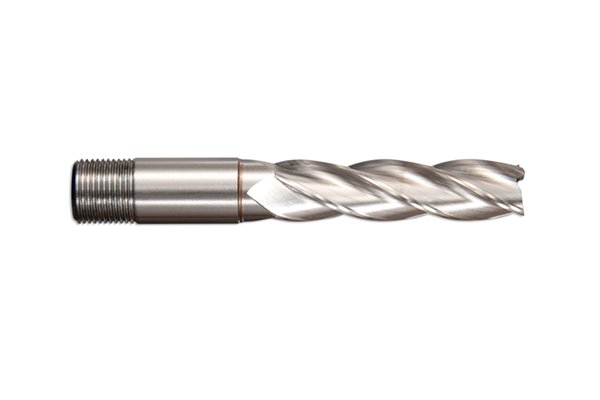

Multi Flute HSCo Screw Shank Long Series End Mills (BS 122|4)

Multi Flute HSCo Screw Shank Long Series End Mills (BS 122|4)

Multi-fluted End-Mill for finishing operations in general purpose steels up to 1200 N/mm2 with good to medium machineability.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
412213.06.0 3.0x6 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 3.00mm x 6mm 4Flt 41221 P0 Bright Finish HSCo 19mm 63.5mm
You need to be logged in to see prices.
4122114.012.0 14.0x12 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 14.00mm x 12mm 4Flt 41221 P0 Bright Finish HSCo 57mm 101.5mm
You need to be logged in to see prices.
4122116.016.0 16.0x16 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 16.00mm x 16mm 4Flt 41221 P0 Bright Finish HSCo 58.5mm 108.5mm
You need to be logged in to see prices.
4122118.016.0 18.0x16 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 18.00mm x 16mm 4Flt 41221 P0 Bright Finish HSCo 67mm 115mm
You need to be logged in to see prices.
4122120.016.0 20.0x16 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 20.00mm x 16mm 4Flt 41221 P0 Bright Finish HSCo 76mm 121.5mm
You need to be logged in to see prices.
4122122.025.0 22.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 22.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 85.5mm 143mm
You need to be logged in to see prices.
4122124.025.0 24.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 24.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 92mm 149mm
You need to be logged in to see prices.
4122125.025.0 25.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 25.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 100mm 157mm
You need to be logged in to see prices.
4122128.025.0 28.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 28.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 98.5mm 157mm
You need to be logged in to see prices.
4122112.012.0 12.0x12 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 12.00mm x 12mm 4Flt 41221 P0 Bright Finish HSCo 49.5mm 95mm
You need to be logged in to see prices.
4122130.025.0 30.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 30.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 98.5mm 157mm
You need to be logged in to see prices.
4122132.025.0 32.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 32.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 100mm 159mm
You need to be logged in to see prices.
4122136.025.0 36.0x25 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 36.00mm x 25mm 6Flt 41221 P0 Bright Finish HSCo 100mm 159mm
You need to be logged in to see prices.
412214.06.0 4.0x6 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 4.00mm x 6mm 4Flt 41221 P0 Bright Finish HSCo 25.5mm 70mm
You need to be logged in to see prices.
412215.06.0 5.0x6 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 5.00mm x 6mm 4Flt 41221 P0 Bright Finish HSCo 31.5mm 76mm
You need to be logged in to see prices.
412216.06.0 6.0x6 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 6.00mm x 6mm 4Flt 41221 P0 Bright Finish HSCo 31.5mm 76mm
You need to be logged in to see prices.
412218.010.0 8.0x10 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 8.00mm x 10mm 4Flt 41221 P0 Bright Finish HSCo 34mm 79.5mm
You need to be logged in to see prices.
41221-781- 7/8"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 7/8" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.3/8" 5.5/8"
You need to be logged in to see prices.
41221-14-14 1/4"x1/4" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1/4" x 1/4" 4Flt 41221 P0 Bright Finish HSCo 1.1/4" 3"
You need to be logged in to see prices.
41221-18-14 1/8"x1/4" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1/8" x 1/4" 4Flt 41221 P0 Bright Finish HSCo 3/4" 2.1/2"
You need to be logged in to see prices.
41221-316-14 3/16"x1/4" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 3/16" x 1/4" 4Flt 41221 P0 Bright Finish HSCo 1" 2.3/4"
You need to be logged in to see prices.
41221-34-58 3/4"x5/8" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 3/4" x 5/8" 4Flt 41221 P0 Bright Finish HSCo 3" 4.25/32"
You need to be logged in to see prices.
41221-38-38 3/8"x3/8" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 3/8" x 3/8" 4Flt 41221 P0 Bright Finish HSCo 1.15/32" 3.1/4"
You need to be logged in to see prices.
41221-516-38 5/16"x3/8" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 5/16" x 3/8" 4Flt 41221 P0 Bright Finish HSCo 1.11/32" 3.1/8"
You need to be logged in to see prices.
41221-58-58 5/8"x5/8" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 5/8" x 5/8" 4Flt 41221 P0 Bright Finish HSCo 2.15/16" 4.9/32"
You need to be logged in to see prices.
41221-716-12 7/16"x1/2" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 7/16" x 1/2" 4Flt 41221 P0 Bright Finish HSCo 1.5/8" 3.1/2"
You need to be logged in to see prices.
41221-12-12 1/2"x1/2" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1/2" x 1/2" 4Flt 41221 P0 Bright Finish HSCo 1.15/16" 3.3/4"
You need to be logged in to see prices.
41221-916-12 9/16"x1/2" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 9/16" x 1/2" 4Flt 41221 P0 Bright Finish HSCo 2.1/4" 4"
You need to be logged in to see prices.
412211-1- 1"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.15/16" 6.3/16"
You need to be logged in to see prices.
412211-121- 1 1/2"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1.1/2" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.15/16" 6.1/4"
You need to be logged in to see prices.
412211-141- 1 1/4"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1.1/4" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.15/16" 6.1/4"
You need to be logged in to see prices.
412211-181- 1 1/8"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1.1/8" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.7/8" 6.3/16"
You need to be logged in to see prices.
412211-381- 1 3/8"x1" HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 1.3/8" x 1" 6Flt 41221 P0 Bright Finish HSCo 3.15/16" 6.1/4"
You need to be logged in to see prices.
4122110.010.0 10.0x10 HSCo8 BS122/4 SCREW SHANK L/S ENDMILL 10.00mm x 10mm 4Flt 41221 P0 Bright Finish HSCo 37mm 82.5mm
You need to be logged in to see prices.
