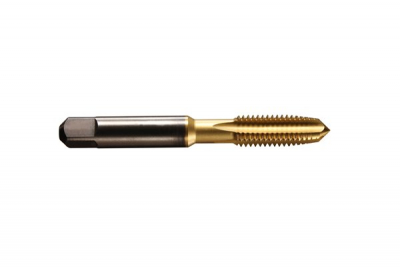

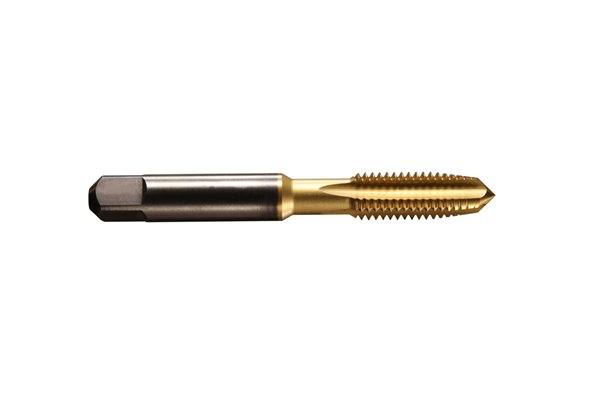

Metric Fine - TiN Coated Straight Flute Taps (ISO 529)

Metric Fine - TiN Coated Straight Flute Taps (ISO 529)

Metric Fine Straight Flute full size taps used as Machine taps or sets of 3 as Hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length. TiN Coating provides longer tools life.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
6008510.031.0 M10x1.00 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M10 x 1.0 MF BOT 60085 P5 TiN Coated HSS 24mm 80mm
You need to be logged in to see prices.
6008510.031.25 M10x1.25 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M10 x 1.25 MF BOT 60085 P5 TiN Coated HSS 24mm 80mm
You need to be logged in to see prices.
6008512.031.0 M12x1.00 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M12 x 1.0 MF BOT 60085 P5 TiN Coated HSS 29mm 89mm
You need to be logged in to see prices.
6008512.031.25 M12x1.25 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M12 x 1.25 MF BOT 60085 P5 TiN Coated HSS 29mm 89mm
You need to be logged in to see prices.
6008514.031.25 M14x1.25 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M14 x 1.25 MF BOT 60085 P5 TiN Coated HSS 30mm 95mm
You need to be logged in to see prices.
6008514.031.5 M14x1.50 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M14 x 1.5 MF BOT 60085 P5 TiN Coated HSS 30mm 95mm
You need to be logged in to see prices.
6008516.031.5 M16x1.50 MF HSS BOT TAP TiN ISO 529 SHORT MACHINE 6H M16 x 1.5 MF BOT 60085 P5 TiN Coated HSS 32mm 102mm
You need to be logged in to see prices.
600853.030.35 M3x0.35 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M3 x 0.35 MF BOT 60085 P5 TiN Coated HSS 16mm 48mm
You need to be logged in to see prices.
600854.030.5 M4x0.50 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M4 x 0.5 MF BOT 60085 P5 TiN Coated HSS 13mm 53mm
You need to be logged in to see prices.
600854.530.5 M4.5x0.50 MF HSS BOT TAP TiN ISO 529 SHORT MACHINE 6H M4.5 x 0.5 MF BOT 60085 P5 TiN Coated HSS 13mm 53mm
You need to be logged in to see prices.
600855.030.5 M5x0.50 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M5 x 0.5 MF BOT 60085 P5 TiN Coated HSS 16mm 58mm
You need to be logged in to see prices.
600855.030.75 M5x0.75 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M5 x 0.75 MF BOT 60085 P5 TiN Coated HSS 16mm 58mm
You need to be logged in to see prices.
600856.030.75 M6x0.75 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M6 x 0.75 MF BOT 60085 P5 TiN Coated HSS 19mm 66mm
You need to be logged in to see prices.
600857.030.75 M7x0.75 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M7 x 0.75 MF BOT 60085 P5 TiN Coated HSS 19mm 66mm
You need to be logged in to see prices.
600858.031.0 M8x1.00 MF HSS BOTTOM TAP TiN ISO 529 SHORT MACHINE 6H M8 x 1.0 MF BOT 60085 P5 TiN Coated HSS 22mm 72mm
You need to be logged in to see prices.
