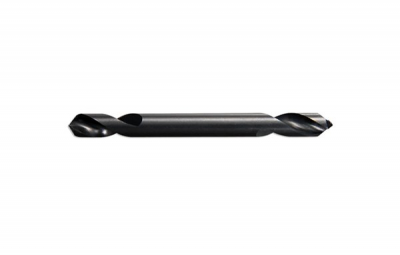

HSS Double Ended Body Drill

HSS Double Ended Body Drill

Double end twist drill, to drill sheet metals. Especially designed for thin sheet metal and carbody building and for rivet holes. Mainly used in hand drills.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Series # Surface Finish Material Flute Length Overall Length Price
081503.5 3.50mm HSS D/ENDED BODY DRILL 3.50mm 08150 P1 Steam Tempered HSS 20mm 52mm
You need to be logged in to see prices.
081508.0 8.00mm HSS D/ENDED BODY DRILL 8.00mm 08150 P1 Steam Tempered HSS 37mm 79mm
You need to be logged in to see prices.
081507.0 7.00mm HSS D/ENDED BODY DRILL 7.00mm 08150 P1 Steam Tempered HSS 34mm 74mm
You need to be logged in to see prices.
081506.8 6.80mm HSS D/ENDED BODY DRILL 6.80mm 08150 P1 Steam Tempered HSS 34mm 74mm
You need to be logged in to see prices.
081506.5 6.50mm HSS D/ENDED BODY DRILL 6.50mm 08150 P1 Steam Tempered HSS 31mm 70mm
You need to be logged in to see prices.
081506.2 6.20mm HSS D/ENDED BODY DRILL 6.20mm 08150 P1 Steam Tempered HSS 31mm 70mm
You need to be logged in to see prices.
081506.0 6.00mm HSS D/ENDED BODY DRILL 6.00mm 08150 P1 Steam Tempered HSS 28mm 66mm
You need to be logged in to see prices.
081505.5 5.50mm HSS D/ENDED BODY DRILL 5.50mm 08150 P1 Steam Tempered HSS 28mm 66mm
You need to be logged in to see prices.
081505.2 5.20mm HSS D/ENDED BODY DRILL 5.20mm 08150 P1 Steam Tempered HSS 26mm 62mm
You need to be logged in to see prices.
081505.1 5.10mm HSS D/ENDED BODY DRILL 5.10mm 08150 P1 Steam Tempered HSS 26mm 62mm
You need to be logged in to see prices.
081505.0 5.00mm HSS D/ENDED BODY DRILL 5.00mm 08150 P1 Steam Tempered HSS 26mm 62mm
You need to be logged in to see prices.
081504.9 4.90mm HSS D/ENDED BODY DRILL 4.90mm 08150 P1 Steam Tempered HSS 26mm 62mm
You need to be logged in to see prices.
081504.5 4.50mm HSS D/ENDED BODY DRILL 4.50mm 08150 P1 Steam Tempered HSS 24mm 58mm
You need to be logged in to see prices.
081504.2 4.20mm HSS D/ENDED BODY DRILL 4.20mm 08150 P1 Steam Tempered HSS 22mm 55mm
You need to be logged in to see prices.
081504.1 4.10mm HSS D/ENDED BODY DRILL 4.10mm 08150 P1 Steam Tempered HSS 22mm 55mm
You need to be logged in to see prices.
081504.0 4.00mm HSS D/ENDED BODY DRILL 4.00mm 08150 P1 Steam Tempered HSS 22mm 55mm
You need to be logged in to see prices.
08150-14 1/4" HSS D/ENDED BODY DRILL 1/4" 08150 P1 Steam Tempered HSS 31mm 70mm
You need to be logged in to see prices.
081503.3 3.30mm HSS D/ENDED BODY DRILL 3.30mm 08150 P1 Steam Tempered HSS 18mm 49mm
You need to be logged in to see prices.
081503.25 3.25mm HSS D/ENDED BODY DRILL 3.25mm 08150 P1 Steam Tempered HSS 18mm 49mm
You need to be logged in to see prices.
081503.2 3.20mm HSS D/ENDED BODY DRILL 3.20mm 08150 P1 Steam Tempered HSS 18mm 49mm
You need to be logged in to see prices.
081503.1 3.10mm HSS D/ENDED BODY DRILL 3.10mm 08150 P1 Steam Tempered HSS 18mm 49mm
You need to be logged in to see prices.
081503.0 3.00mm HSS D/ENDED BODY DRILL 3.00mm 08150 P1 Steam Tempered HSS 16mm 46mm
You need to be logged in to see prices.
081502.5 2.50mm HSS D/ENDED BODY DRILL 2.50mm 08150 P1 Steam Tempered HSS 14mm 43mm
You need to be logged in to see prices.
081502.0 2.00mm HSS D/ENDED BODY DRILL 2.00mm 08150 P1 Steam Tempered HSS 12mm 38mm
You need to be logged in to see prices.
0815010.0 10.00mm HSS D/ENDED BODY DRILL 10.00mm 08150 P1 Steam Tempered HSS 43mm 89mm
You need to be logged in to see prices.
08150-932 9/32" HSS D/ENDED BODY DRILL 9/32" 08150 P1 Steam Tempered HSS 34mm 74mm
You need to be logged in to see prices.
08150-732 7/32" HSS D/ENDED BODY DRILL 7/32" 08150 P1 Steam Tempered HSS 28mm 66mm
You need to be logged in to see prices.
08150-532 5/32" HSS D/ENDED BODY DRILL 5/32" 08150 P1 Steam Tempered HSS 22mm 55mm
You need to be logged in to see prices.
08150-332 3/32" HSS D/ENDED BODY DRILL 3/32" 08150 P1 Steam Tempered HSS 14mm 43mm
You need to be logged in to see prices.
08150-316 3/16" HSS D/ENDED BODY DRILL 3/16" 08150 P1 Steam Tempered HSS 26mm 62mm
You need to be logged in to see prices.
08150-18 1/8" HSS D/ENDED BODY DRILL 1/8" 08150 P1 Steam Tempered HSS 18mm 49mm
You need to be logged in to see prices.
