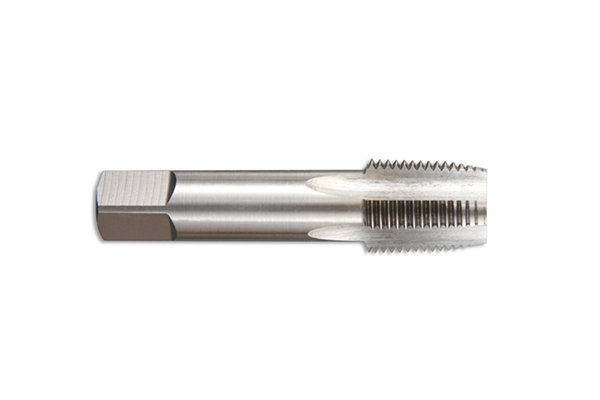

BSP - Straight Flute Taps (ISO 2284)

Descriptions

British Standard Pipe Straight Flute full size taps used as Machine taps or sets of 3 as Hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal Diameter	Series #	Surface Finish	Material	Flute Length	Overall Length	Price
606001-344	1.3/4"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1.3/4" BSP SET	60600	P0 Bright Finish	HSS	39mm	132mm	You need to be logged in to see prices.
606001-121	1.1/2"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1.1/2" BSP TPR	60600	P0 Bright Finish	HSS	37mm	125mm	You need to be logged in to see prices.
606001-122	1.1/2"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1.1/2" BSP SEC	60600	P0 Bright Finish	HSS	37mm	125mm	You need to be logged in to see prices.
606001-123	1.1/2"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1.1/2" BSP BOT	60600	P0 Bright Finish	HSS	37mm	125mm	You need to be logged in to see prices.
606001-124	1.1/2"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1.1/2" BSP SET	60600	P0 Bright Finish	HSS	37mm	125mm	You need to be logged in to see prices.
606001-141	1.1/4"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1.1/4" BSP TPR	60600	P0 Bright Finish	HSS	36mm	119mm	You need to be logged in to see prices.
606001-142	1.1/4"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1.1/4" BSP SEC	60600	P0 Bright Finish	HSS	36mm	119mm	You need to be logged in to see prices.
606001-143	1.1/4"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1.1/4" BSP BOT	60600	P0 Bright Finish	HSS	36mm	119mm	You need to be logged in to see prices.
606001-144	1.1/4"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1.1/4" BSP SET	60600	P0 Bright Finish	HSS	36mm	119mm	You need to be logged in to see prices.
606001-2	1"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1" BSP SEC	60600	P0 Bright Finish	HSS	33mm	109mm	You need to be logged in to see prices.
606001-3	1"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1" BSP BOT	60600	P0 Bright Finish	HSS	33mm	109mm	You need to be logged in to see prices.
606001-341	1.3/4"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1.3/4" BSP TPR	60600	P0 Bright Finish	HSS	39mm	132mm	You need to be logged in to see prices.
606001-342	1.3/4"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1.3/4" BSP SEC	60600	P0 Bright Finish	HSS	39mm	132mm	You need to be logged in to see prices.
606001-343	1.3/4"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1.3/4" BSP BOT	60600	P0 Bright Finish	HSS	39mm	132mm	You need to be logged in to see prices.
606001-1	1"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1" BSP TPR	60600	P0 Bright Finish	HSS	33mm	109mm	You need to be logged in to see prices.
606001-4	1"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1" BSP SET	60600	P0 Bright Finish	HSS	33mm	109mm	You need to be logged in to see prices.
606002-1	2"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	2" BSP TPR	60600	P0 Bright Finish	HSS	41mm	140mm	You need to be logged in to see prices.
606002-121	2.1/2"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	2.1/2" BSP TPR	60600	P0 Bright Finish	HSS	45mm	153mm	You need to be logged in to see prices.
606002-122	2.1/2"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	2.1/2" BSP SEC	60600	P0 Bright Finish	HSS	45mm	153mm	You need to be logged in to see prices.
606002-123	2.1/2"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	2.1/2" BSP BOT	60600	P0 Bright Finish	HSS	45mm	153mm	You need to be logged in to see prices.
606002-124	2.1/2"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	2.1/2" BSP SET	60600	P0 Bright Finish	HSS	45mm	153mm	You need to be logged in to see prices.
606002-141	2.1/4"x11 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	2.1/4" BSP TPR	60600	P0 Bright Finish	HSS	42mm	142mm	You need to be logged in to see prices.
606002-142	2.1/4"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	2.1/4" BSP SEC	60600	P0 Bright Finish	HSS	42mm	142mm	You need to be logged in to see prices.
606002-143	2.1/4"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	2.1/4" BSP BOT	60600	P0 Bright Finish	HSS	42mm	142mm	You need to be logged in to see prices.
606002-144	2.1/4"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	2.1/4" BSP SET	60600	P0 Bright Finish	HSS	42mm	142mm	You need to be logged in to see prices.
606002-2	2"x11 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	2" BSP SEC	60600	P0 Bright Finish	HSS	41mm	140mm	You need to be logged in to see prices.
606002-3	2"x11 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	2" BSP BOT	60600	P0 Bright Finish	HSS	41mm	140mm	You need to be logged in to see prices.
606002-4	2"x11 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	2" BSP SET	60600	P0 Bright Finish	HSS	41mm	140mm	You need to be logged in to see prices.
60600-343	3/4"x14 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	3/4 BSP BOT	60600	P0 Bright Finish	HSS	28mm	96mm	You need to be logged in to see prices.
60600-122	1/2"x14 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1/2" BSP SEC	60600	P0 Bright Finish	HSS	26mm	87mm	You need to be logged in to see prices.
60600-123	1/2"x14 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1/2" BSP BOT	60600	P0 Bright Finish	HSS	26mm	87mm	You need to be logged in to see prices.
60600-124	1/2"x14 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1/2" BSP SET	60600	P0 Bright Finish	HSS	26mm	87mm	You need to be logged in to see prices.
60600-141	1/4"x19 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1/4" BSP TPR	60600	P0 Bright Finish	HSS	19mm	67mm	You need to be logged in to see prices.
60600-142	1/4"x19 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1/4" BSP SEC	60600	P0 Bright Finish	HSS	19mm	67mm	You need to be logged in to see prices.
60600-143	1/4"x19 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1/4" BSP BOT	60600	P0 Bright Finish	HSS	19mm	67mm	You need to be logged in to see prices.
60600-144	1/4"x19 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1/4" BSP SET	60600	P0 Bright Finish	HSS	19mm	67mm	You need to be logged in to see prices.
60600-181	1/8"x28 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1/8" BSP TPR	60600	P0 Bright Finish	HSS	15mm	59mm	You need to be logged in to see prices.
60600-182	1/8"x28 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	1/8" BSP SEC	60600	P0 Bright Finish	HSS	15mm	59mm	You need to be logged in to see prices.
60600-183	1/8"x28 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	1/8" BSP BOT	60600	P0 Bright Finish	HSS	15mm	59mm	You need to be logged in to see prices.
60600-184	1/8"x28 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	1/8" BSP SET	60600	P0 Bright Finish	HSS	15mm	59mm	You need to be logged in to see prices.
60600-341	3/4"x14 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	3/4 BSP TPR	60600	P0 Bright Finish	HSS	28mm	96mm	You need to be logged in to see prices.
60600-342	3/4"x14 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	3/4 BSP SEC	60600	P0 Bright Finish	HSS	28mm	96mm	You need to be logged in to see prices.
60600-121	1/2"x14 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	1/2" BSP TPR	60600	P0 Bright Finish	HSS	26mm	87mm	You need to be logged in to see prices.
60600-344	3/4"x14 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	3/4 BSP SET	60600	P0 Bright Finish	HSS	28mm	96mm	You need to be logged in to see prices.
60600-381	3/8"x19 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	3/8 BSP TPR	60600	P0 Bright Finish	HSS	21mm	75mm	You need to be logged in to see prices.
60600-382	3/8"x19 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	3/8 BSP SEC	60600	P0 Bright Finish	HSS	21mm	75mm	You need to be logged in to see prices.
60600-383	3/8"x19 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	3/8 BSP BOT	60600	P0 Bright Finish	HSS	21mm	75mm	You need to be logged in to see prices.
60600-384	3/8"x19 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	3/8 BSP SET	60600	P0 Bright Finish	HSS	21mm	75mm	You need to be logged in to see prices.
60600-581	5/8"x14 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	5/8 BSP TPR	60600	P0 Bright Finish	HSS	26mm	91mm	You need to be logged in to see prices.
60600-582	5/8"x14 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	5/8 BSP SEC	60600	P0 Bright Finish	HSS	26mm	91mm	You need to be logged in to see prices.
60600-583	5/8"x14 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	5/8 BSP BOT	60600	P0 Bright Finish	HSS	26mm	91mm	You need to be logged in to see prices.
60600-584	5/8"x14 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	5/8 BSP SET	60600	P0 Bright Finish	HSS	26mm	91mm	You need to be logged in to see prices.
60600-781	7/8"x14 BSP HSS TAPER TAP (G) ISO2284/1982 SHORT MACHINE	7/8 BSP TPR	60600	P0 Bright Finish	HSS	29mm	102mm	You need to be logged in to see prices.
60600-782	7/8"x14 BSP HSS SECOND TAP (G) ISO2284/1982 SHORT MACHINE	7/8 BSP SEC	60600	P0 Bright Finish	HSS	29mm	102mm	You need to be logged in to see prices.
60600-783	7/8"x14 BSP HSS BOTTOM TAP (G) ISO2284/1982 SHORT MACHINE	7/8 BSP BOT	60600	P0 Bright Finish	HSS	29mm	102mm	You need to be logged in to see prices.
60600-784	7/8"x14 BSP HSS TAP SET (G) ISO2284/1982 SHORT MACHINE	7/8 BSP SET	60600	P0 Bright Finish	HSS	29mm	102mm	You need to be logged in to see prices.
